케이블선박

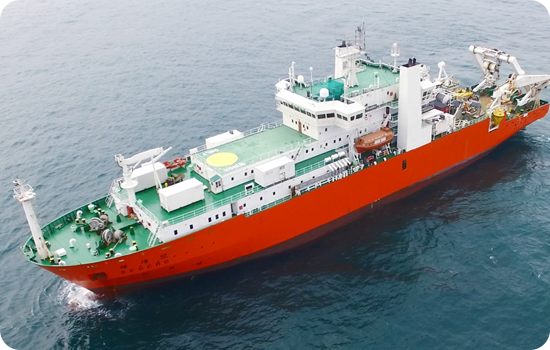

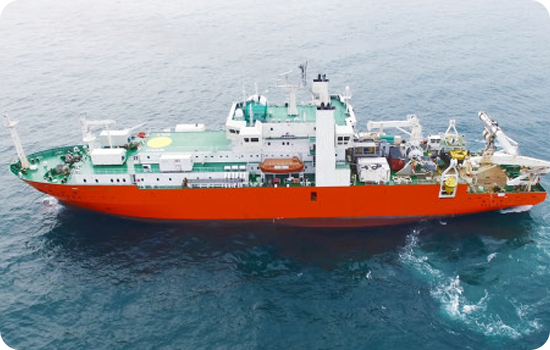

Cable Ship “Segero”
Characteristics
| 구분 |
내용 |
| General Vessel Name |
Cable Ship SEGERO |
| Flag |
Republic of Korea |
| Classification |
+KRS1 WORK VESSEL CABLE LAYER ID CLEAN1 LG LI
+KRM1 UMA BWT DPS(1) |
| Year Built |
Busan, Korea - April 1998 |
| Base Port |
Jeju, Korea |
| Ship Builder |
HANJIN HEAVY INDUSTRY CO. LTD. |
| Accommodation |
62persons |
Principal Dimensions
| 구분 |
내용 |
| Length Overall (LOA) |
115.38m |
| Length (LPP) |
95.60m |
| Breadth Moulded |
20.000m |
| Draft |
7.814m |
| Deadweight |
6,409ton |
| Net Register Tonnage (NRT) |
2,496ton |
| Gross Tonnage |
8,323ton |
Deck Equipment
| 구분 |
내용 |
| Telescopic Crane |
10t X 11m on the upper deck |
| Knuckle Crane |
30T X 4-24m on the main deck(Port side) |
| Provision Crane |
2t X 13m for ship service on fore side |
| A-Frame Type |
50t SWL(Maker : SMD), Out Reach : 4.5m
Max. Down Reach : 5.6m, Free Width : 0.2m |

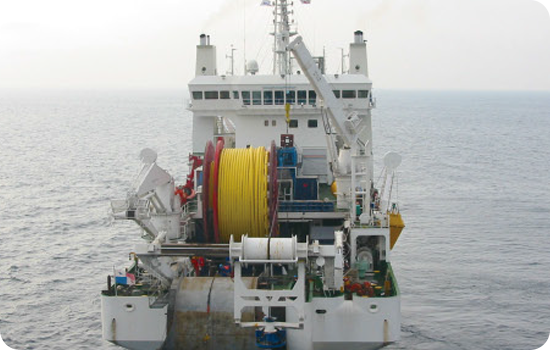

Cable Laying Equipment
| 구분 |
내용 |
| Cable Tank |
2 Main tanks : Dia.-16m, Coiling capacity : 1,888.20㎥
2 Spare Tanks : Dia.-6.75m, Coiling capacity : 159.0㎥ |
| Drum Engines |
2 X 40T(Dia.4m), Maker : DOWTY |
| DOHB |
2 X 4 Wheel pair, Cable : Dia.125mm, Repeater :Dia.400mm |
| Transporters |
2 Wheel pair, Max : 2t, Maker : DOWTY |
| Repeater Stowage (Cooling / Max number) |
Total Stacking Capacity 120 Repeaters |
Propulsion System
| 구분 |
내용 |
| Main Generator Engine |
Large(2Set) : 4,800PS X 720RPM - SSHI/MAN-B&W
Medium(1Set) : 3,600PS X 720RPM - SSHI/MAN-B&W
Small(1Set) : 1,305PS X 900RPM - SSHI/MAN-B&W |
| Main AC Generators |
Large(2Set) : Output-4,250KVA / 3,300V/60Hz / 3Phases
Medium(1Set) : Output-2,875KVA / 3,300V/60Hz / 3Phases
Small(1Set) : Output-1,063KVA / 3,300V/60Hz / 3Phases |
| Propulsion Thrusters |
USE4001 Azimuth Thrusters X 2Sets, Propeller RPM-232 |
| Tunnel Thrusters |
FT16H X 2Sets, Propeller RPM-275 |
| Gill Thruster |
T3S Vertical Shaft |
| Economical |
12.0knots |
Navigation Equipment
| 구분 |
내용 |
| X-band Radar |
SAM ELECTRONICS, RP1109-2A8X |
| S-band Radar |
SAM ELECTRONICS, RP1109-3A14S |
| AIS |
Furuno, FA-170 |
| NAVTEX RECEIVER |
JRC, NRC 300A |
| GPS |
FURUNO GP150 |
| Echo Sounder |
ELAC LAZ5100 |
| Hydrographic Echo Sounder |
SIMRAD, EA500 |
| MAGNETIC Compass |
SARACOM, C.PLATH |
| Gyro Compass |
2 X TOKIMAC, TG 8000 |
| DOPPLER SPEED Log |
2 X STN ATLAS, DOLOG 20 |
| Monotoring S/W |
Winfrog, Makai Plan |
Technical Rooms
| 구분 |
내용 |
| Technical Rooms |
Cable Joint Works |
| Test Room for Cable |
Transmission, Fiber Test |
| X-Ray Room(Main Deck) |
For jointing & Moulding |
Communication Equipment
| 구분 |
내용 |
| Satelite Communication |
V-SAT, Starlink |
