LS Marine Solution Ltd. is recognized technique in world sea field.
Vessels

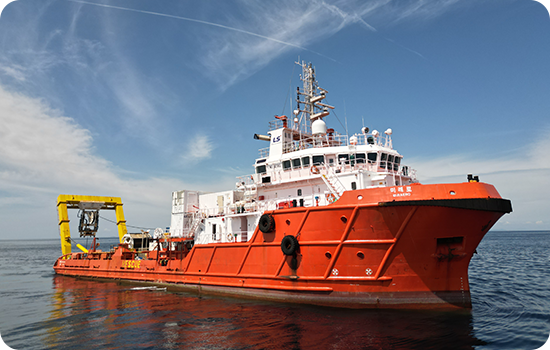

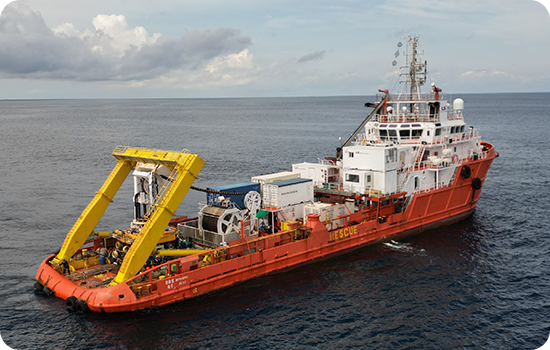

M/V “MIRAERO"
Characteristics
| Item |
Details |
| General Vessel Name |
Multi-purposed Support Vessel MIRAERO |
| Flag |
Republic of Korea |
| Port of Registry |
Jeju, Korea |
| Type of Vessel |
Offshore Support, Towing, Anchor Handling & Fire Fighting |
| Classification |
KR |
| Year Built |
March 2008 |
| Accommodation |
52persons |
Principal Dimensions
| Item |
Details |
| Length Overall (LOA) |
70.05m |
| Length (LPP) |
63.00m |
| Breadth Moulded |
14.95m |
| Deck Space |
490㎡ |
| Mezzanine Deck |
16m X 5m - 5mt per ㎡ |
| Summer / Maximum Draft |
5.016m |
| Deadweight |
1,597ton |
| Net Register Tonnage (NRT) |
599ton |
| Gross Tonnage |
2,017ton |
| Displacement (Max.) |
3,752ton |
Deck Equipment
| Item |
Details |
| Port Crane |
Provision Crane, 2.2ton @ 12m, 5.1ton @ 6m |
| A-Frame Type |
60ton A-frame |
Dynamic Position System
| Item |
Details |
| Class Definition |
DPS-2 |
| Type |
Kongsberg KPOS 21 |
DGPS
Acoustic PRS
Laser PRS |
2 X Kongsberg Seatex DPS i1
Kongsberg HiPAP 501 SSBL
Kongsberg SpotTrack |
Propulsion System
| Item |
Details |
| Main Engine |
2 x 2025kW @ 1000 rpm, Wartsila 6L26A, 4 Stroke Cycle, Medium Speed Engine |
| Propeller |
2 x Wartsila Propulsion (CPP), 4 Blades, 2,700 mm Dia. |
| Fuel Type - MGO / HFO |
Marine Gas Oil (MGO) |
| Rudder |
2 x Becker Rudder |
| Steering Gear |
Wagner, Twin LA2 4.4-45-CB2 |
| BHP |
5,508 |
| KW |
4,050 |
| Bollard Pull(Static) |
70.1mt |
| Bow Thruster |
2 x 515kW Electric-driven Kawasaki KT-72B3 Tunnel / Type (CPP); 8mt Thrust |
| Stern Thruster |
515 kW Electric-driven Kawasaki KT-72B3 Tunnel / Type (CPP); 8mt Thrust |
| Economical Speed |
11knots |
| Max Speed |
13.5knots |
Navigation Equipment
| Item |
Details |
| X-band Radar |
JRC JMR-9225-6X |
| S-band Radar |
JRC JMR-9282-S |
| AIS |
Furuno FA-100 |
| Autopilot |
Pilotstar D |
| GPS |
Furuno GP-150 |
| Echo Sounder |
Furuno FE-700 |
| Std Compass |
Lilley & Gillie MK2000 |
| Gyro Compass |
3 X SPERRY Navigat X MK1, MOD 10 |
| Log |
Furuno DS-80 |
| Wind Gauge |
Gill, Wind Oserver II 1390 |
Communication Equipment
| Item |
Details |
| Satelite Communication |
V-SAT, Starlink |
